Dynex Pumps and Valves for High-Pressure Applications
At IndusCo Group, we supply top-quality Dynex pumps and valves engineered for high-pressure hydraulic systems in mining, oil, and heavy industry. Trusted worldwide, Dynex offers unmatched durability and performance in critical applications, including mobile equipment, drilling rigs, and processing plants. Count on IndusCo for precision components and expert support.

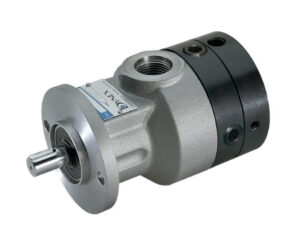

DYNEX PF500 SERIES FIXED DISPLACEMENT CHECKBALL PUMPS
0.16 to 0.68 gpm (0,61 to 2,57 L/min) at 1800 rpm
Rated: 10 000 psi (700 bar), Maximum: 15 000 psi (1040 bar)
- Bi-directional rotation providing constant flow direction regardless of drive shaft rotation.
- Shaft Options: Standard keyed, Optional spline.
- Seal Options: Standard Fluorocarbon, Optional EPR seals for use with some phosphate ester fluids, or Fluorocarbon with high pressure shaft seal.
- Split-Flow® models can supply multiple, independent flows from one pump! Multiple flows are achieved by combining the output of individual pistons in various combinations (up to one outlet per piston). This pump has either 3 or 4 pistons depending on the model.

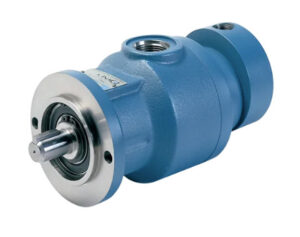

DYNEX PF1000 SERIES FIXED DISPLACEMENT CHECKBALL PUMPS
1.5 to 4.1 gpm (5,7 to 15,5 L/min) at 1800 rpm
6000 psi (420 bar) – 10 000 psi (700 bar)
- Bi-directional rotation providing constant flow direction regardless of drive shaft rotation.
- Shaft Options: Standard keyed, Optional spline.
- Seal Options: Standard Fluorocarbon, Optional EPR seals for use with some phosphate ester fluids, or Fluorocarbon with high pressure shaft seal.
- Split-Flow® models can supply multiple, independent flows from one pump! Multiple flows are achieved by combining the output of individual pistons in various combinations (up to one outlet per piston). This pump has 4 pistons.

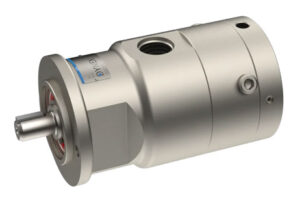

DYNEX PF1300 SERIES FIXED DISPLACEMENT CHECKBALL PUMPS
FOR WATER-BASED FLUIDS
0.31 to 1.42 gpm (1,17 to 5,37 L/min) at 1800 rpm
Maximum: 15 000 psi (1040 bar)
- Corrosion resistant stainless-steel design available.
- A wide range of fluid compatibility, for reliable operation with low-lubricity, low viscosity fluids.
- Bi-directional rotation providing constant flow direction regardless of drive shaft rotation.
- Shaft Options: Standard keyed, Optional spline.
- Seal Options: Standard Fluorocarbon, Optional EPR seals for use with some phosphate ester fluids, or Fluorocarbon with high pressure shaft seal.
- Single-fluid design eliminates the need for a lubrication circuit.
DYNEX PF2000 FIXED DISPLACEMENT CHECKBALL PUMPS
2.5 to 8.5 gpm (9,5 to 32,2 L/min) at 1800 rpm
Rated: 3 000 psi (210 bar), Maximum: 10 000 psi (700 bar)
- Contamination tolerant, for operation in dirty environments.
- Bi-directional rotation providing constant flow direction regardless of drive shaft rotation.
- Shaft Options: Standard keyed, Optional spline.
- Seal Options: Standard Fluorocarbon, Optional EPR seals for use with some phosphate ester fluids, or Fluorocarbon with high pressure shaft seal.
- Split-Flow® models can supply multiple, independent flows from one pump! Multiple flows are achieved by combining the output of individual pistons in various combinations (up to one outlet per piston). This pump has 6 pistons.

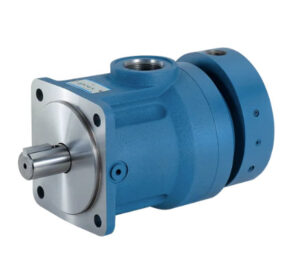

DYNEX PF3000 SERIES FIXED DISPLACEMENT CHECKBALL PUMPS
8.1 to 17.2 gpm (30,7 to 65,1 L/min) at 1800 rpm
Rated: 4 000 psi (275 bar), Maximum: 10 000 psi (700 bar)
- Contamination tolerant, for operation in dirty environments.
- Bi-directional rotation providing constant flow direction regardless of drive shaft rotation.
- Shaft Options: Standard keyed, Optional spline.
- Seal Options: Standard Nitrile, Optional Fluorocarbon, or Optional EPR seals for use with some phosphate ester fluids.
- Split-Flow® models can supply multiple, independent flows from one pump! Multiple flows are achieved by combining the output of individual pistons in various combinations (up to one outlet per piston). This pump has 8 pistons.

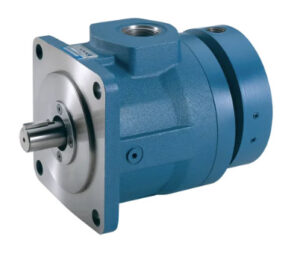

DYNEX PF4000 SERIES FIXED DISPLACEMENT CHECKBALL PUMPS
7.7 to 14.0 gpm (29,1 to 53,0 L/min) at 1800 rpm
Rated: 6 000 psi (420 bar), Maximum: 10 000 psi (700 bar)
- Contamination tolerant, for operation in dirty environments.
- A wide range of fluid compatibility, for reliable operation with low-lubricity, low viscosity fluids.
- Bi-directional rotation providing constant flow direction regardless of drive shaft rotation.
- Shaft Options: Standard keyed, Optional spline.
- Seal Options: Standard Nitrile, Optional Fluorocarbon, or Optional EPR seals for use with some phosphate ester fluids.
- Split-Flow® models can supply multiple, independent flows from one pump! Multiple flows are achieved by combining the output of individual pistons in various combinations (up to one outlet per piston). This pump has 10 pistons.

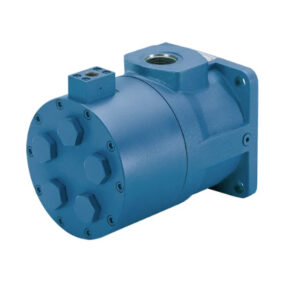

DYNEX PF4200 SERIES FIXED DISPLACEMENT CHECKBALL PUMPS
2.2 to 6.7 gpm (8,3 to 25,4 L/min) at 1800 rpm
Rated: 8 000 psi (560 bar), Maximum: 20 000 psi (1380 bar)
- A wide range of fluid compatibility, for reliable operation with low-lubricity, low viscosity fluids.
- Bi-directional rotation providing constant flow direction regardless of drive shaft rotation.
- Shaft Options: Standard keyed, Optional spline.
- Seal Options: Standard Fluorocarbon with high-pressure shaft seal. Optional EPR seals for use with some phosphate ester fluids.

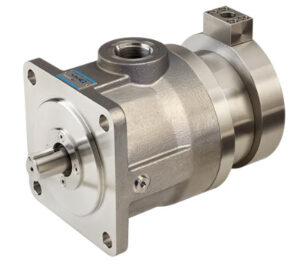

DYNEX PF4300 SERIES FIXED DISPLACEMENT CHECKBALL PUMPS FOR WATER-BASED FLUIDS
2.2 to 8.2 gpm (8,3 to 31,0 L/min) at 1800 rpm
Maximum: 15 000 psi (1040 bar)
- Corrosion resistant stainless steel design.
- A wide range of fluid compatibility, for reliable operation with low-lubricity, low viscosity fluids.
- Bi-directional rotation providing constant flow direction regardless of drive shaft rotation.
- Single-fluid design eliminates the need for a lubrication circuit.
- Shaft Options: Standard keyed, Optional spline.
- Seal Options: Standard Fluorocarbon with high-pressure shaft seal.
- Split-Flow® models can supply multiple, independent flows from one pump! Multiple flows are achieved by combining the output of individual pistons in various combinations (up to one outlet per piston).

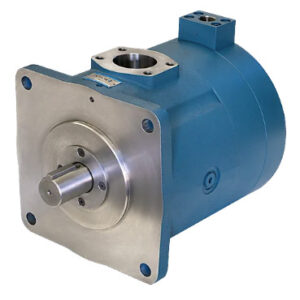

DYNEX PF6000 SERIES FIXED DISPLACEMENT CHECKBALL PUMPS
14.1 to 29.8 gpm (53,4 to 112,8 L/min) at 1800 rpm
6000 psi (420 bar) – 15 000 psi (1040 bar)
- Contamination tolerant, for operation in dirty environments.
- Bi-directional rotation providing constant flow direction regardless of drive shaft rotation.
- Shaft Options: Standard keyed, Optional spline.
- Seal Options: Standard Fluorocarbon with high-pressure shaft seal.
- Split-Flow® models can supply multiple, independent flows from one pump! Multiple flows are achieved by combining the output of individual pistons in various combinations (up to one outlet per piston). This pump has either 8 or 10 pistons depending on the model.
Why Choose Dynex for Industrial Applications
Dynex, a globally trusted manufacturer of hydraulic components, partners with IndusCo Group to deliver high-performance solutions including piston pumps, control valves, and relief valves.
We provide specialized support and supply for mining, oil, gas, and industrial operations across Latin America and global markets.
🔹 Reliable Dynex pumps and valves for high-pressure systems
🔹 Hydraulic power units and precision control components
🔹 Trusted technical support and fast-response service
📩 Contact us today to upgrade your operations with durable hydraulic solutions from Dynex and IndusCo. Power, control, and performance — all in one place. 🚀
Dynex Pumps and Valves, industrial solutions we offer
Dynex pumps
We are your best option to buy high pressure and quality Dynex pumps throughout the United States because we have a wide range of possibilities at the best price among all distributors.
Dynex checkball piston pumps
Dynex checkball piston pumps use a ball valve system to control flow and pressure, ensuring high resistance to contamination, cavitation, and various fluids.
Operate at high pressures
Split-Flow® design for independent flow control
Ideal for demanding applications – tunnel drilling, mining, smelting, and oil well control
Get reliable and efficient hydraulic solutions with Dynex!
Dynex hydraulic pump
We have a wide range of Dynex hydraulic pumps that work at high pressure and can control the pressure drop in the circuits.
Our pumps are ideal for industrial applications where climate, environment and working conditions are the most complex.
Buy your hydraulic pump now and count on high pumping power in your processes and longer working times.
Dynex axial piston pump
Dynex axial piston pumps are positive displacement hydraulic pumps with parallel pistons in a compact, lightweight design for high efficiency and performance.
Fixed or variable flow with adjustable geometric flow rate
Operate at high pressures up to 10,000 psi (690 bar) – PF3 series
Compatible with various hydraulic fluids, including fire-resistant and eco-friendly options
Ideal for precision applications – mobile machinery, shipbuilding, metallurgy, and more
Boost your operations with Dynex high-performance pumps!
Dynex Valves
We are also suppliers of Dynex control valves, and we have a wide catalog of products. Let’s take a look at the most important categories we have.
Dynex directional control valves
They are used to control the pressure and flow of various hydraulic fluids in industrial processes. They can be used as pressure controllers, nominal flow controllers and directional controllers.
Do you want to buy top quality pattern directional control valves in the USA?
Ask now for our Dynex valves and enjoy maximum quality in your operations.
Dynex solenoid valves
Control your liquid and gaseous fluids with valves of the best quality and resistance in the market, with engineering details that make them more precise than other brands.
Dynex solenoid valves can be actuated by electric current or by the pressure of the working fluids.
One of their best advantages is that they work at high pressure and can control special fire resistant fluids.
Dynex pressure reducing valve
And finally, if you need to reduce the pressure in your industrial processes, Dynex pressure control valves are the ideal industrial solution for you.
They can work in demanding conditions, including wind, water, sun and rain.
These Dynex valves are initiated by a hydraulically actuated diaphragm that adjusts according to fluid demand.
And we are the Dynex pump distributors that put these and other fluid control elements at your fingertips.
So, buy safe and cheap at IndusCo.
